« on: March 14, 2011, 01:07:08 PM »

If you have 2009 you have the C channels and all you need are the cross rails.
If you have an EARLY build 2010 (like mine) you have the C channels- and you only need the cross rails.
If you have a later 2010 and 2011- you need to order the C-channel AND cross Rail KIT.

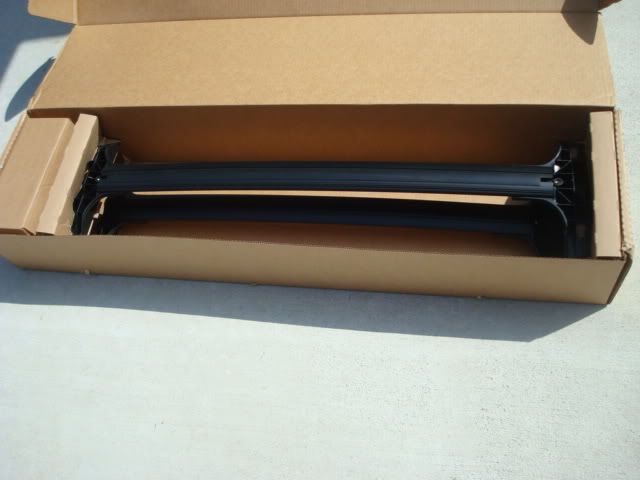

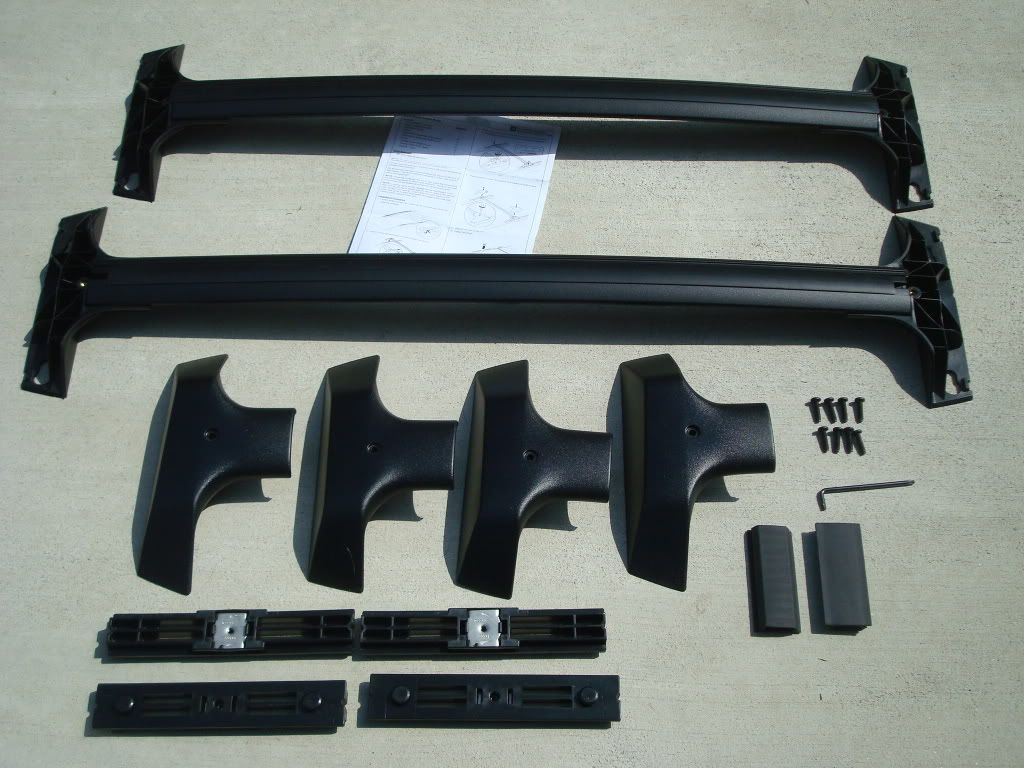

This is the crossrail kit in the box- and Laid out with all the items in the box.



My finger is pointing at the C-Channel.

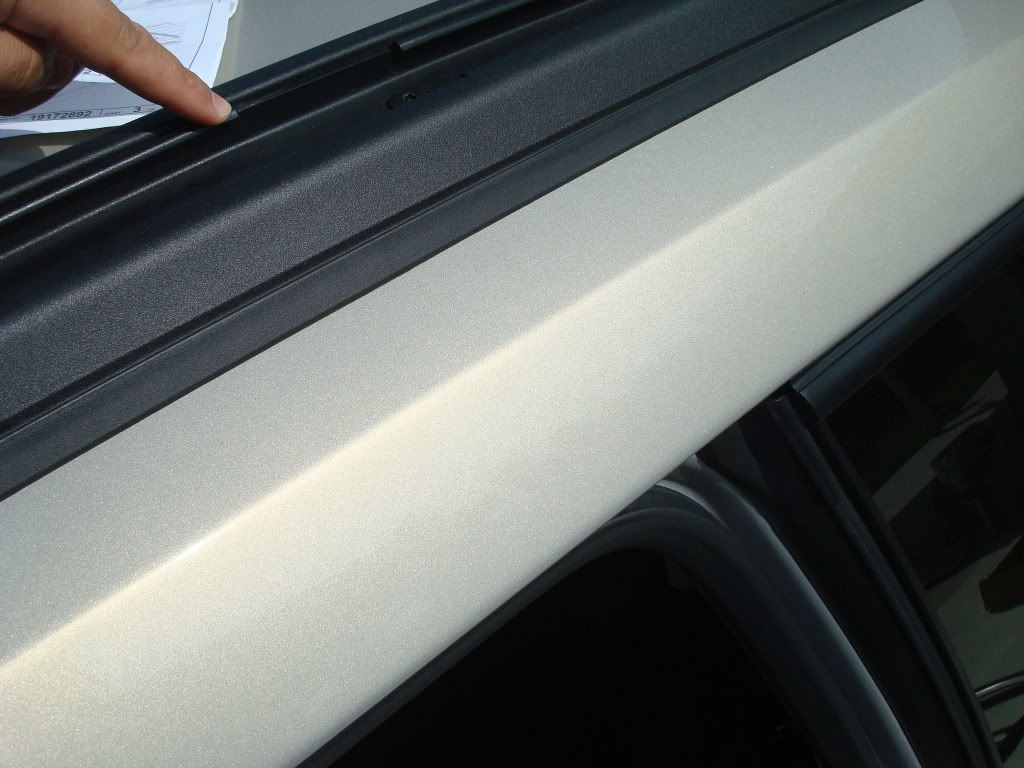

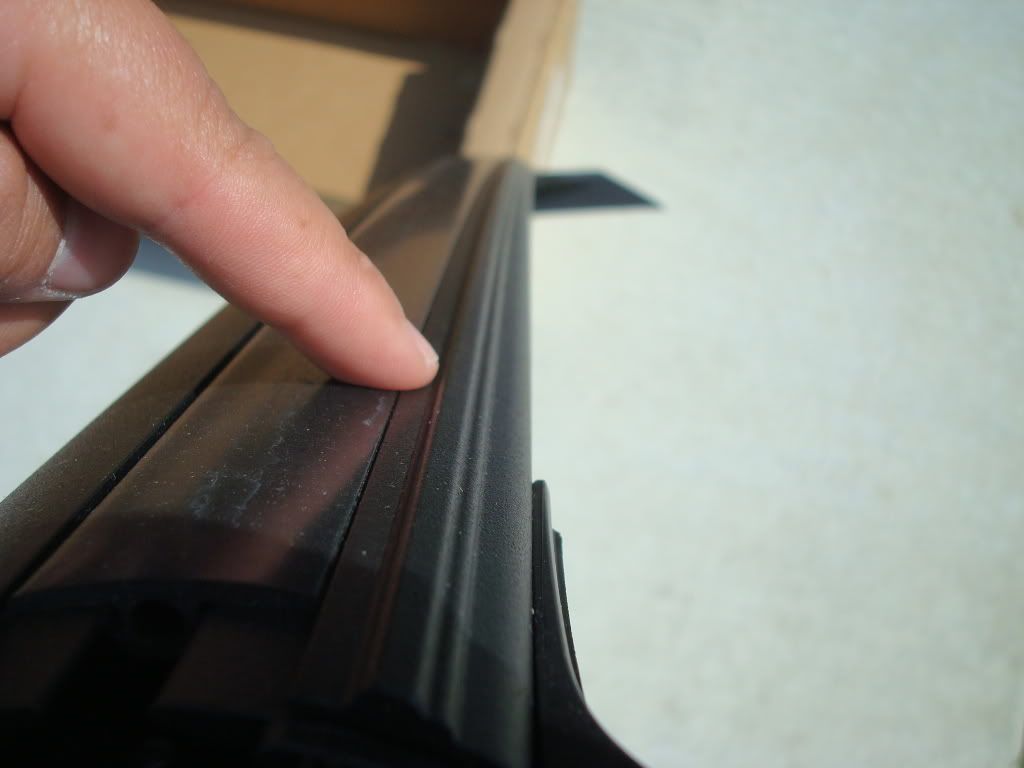

My finger is pointing at the black strip that ALL Traverses come with….

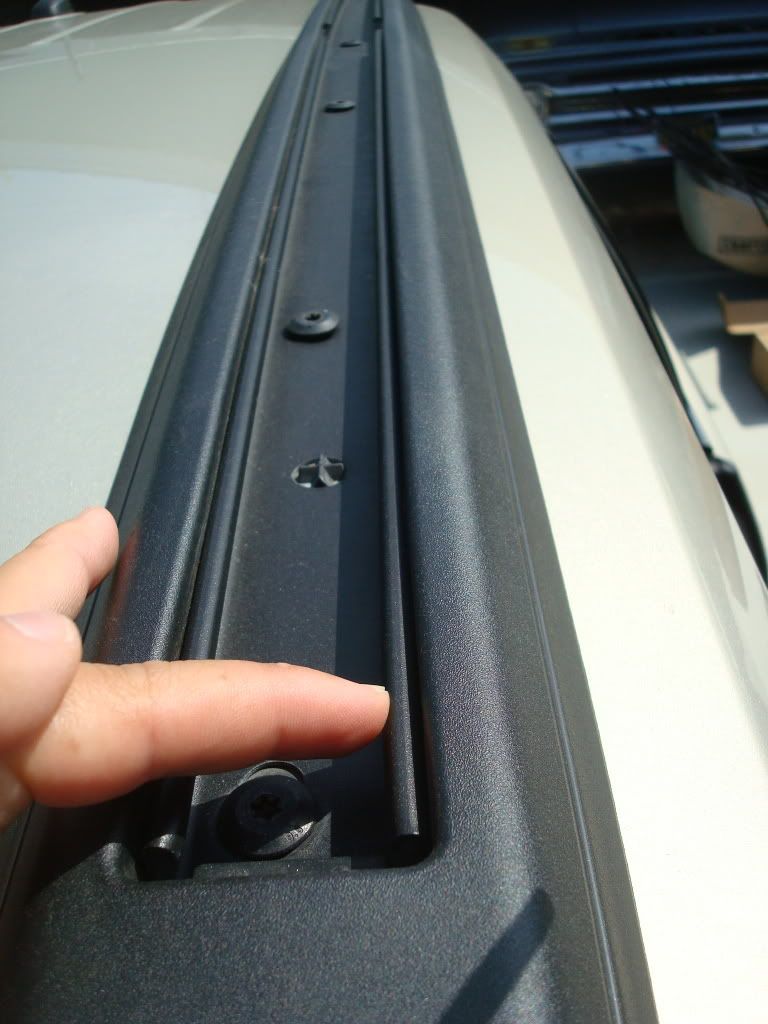

If you have the later 2010 or 2011.. you have this strip.. but you DON’T have the c-channel above.
You have to check to make sure you have the metal c-channel above.


Note the kit comes with SECURITY torx screws. Note the screw has a stub in the middle.
Regular torx screwdriver will not work- you need the special key that’s provided with the set.
Note it has an open center. If the dealer installed your crossbars- make sure you got the tool….
You need the tool to be able to remove and move the crossbars front/back.

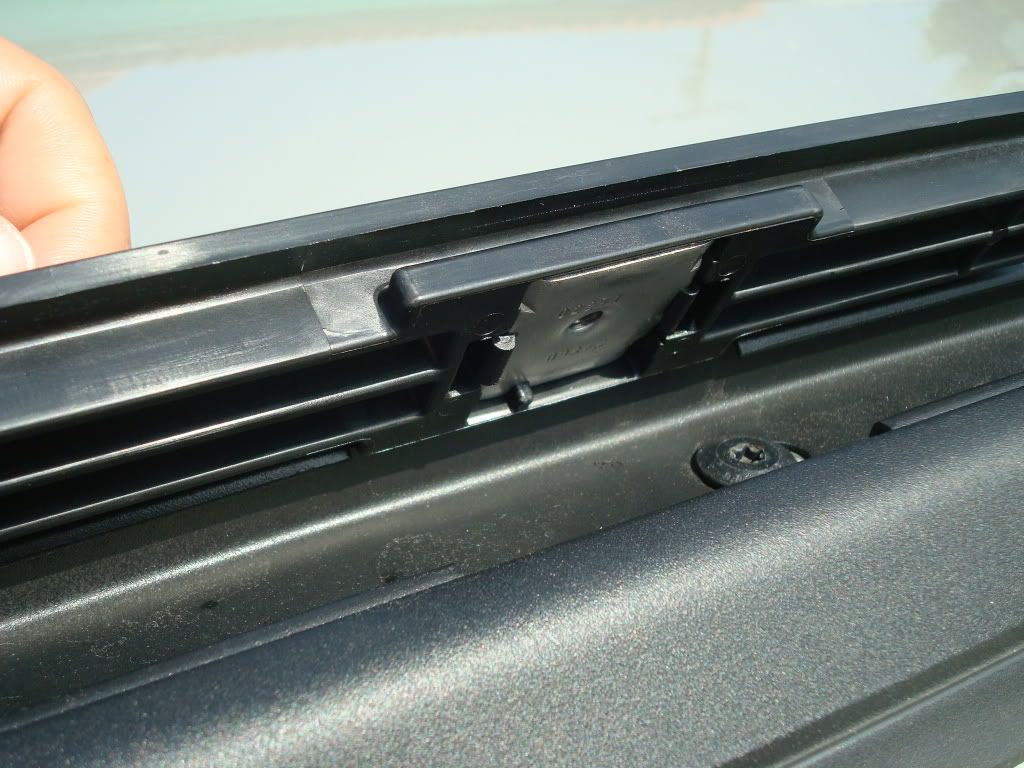

In the channel- there is an ‘opening’ where you can drop in the sliders. This is the only place you can insert them.Its located in the area aboce the rear of the passenger door- on both sides.
Here you insert the slider bar.



You slide one bar to the front- and one to the rear. Do this on both sides. The slider bar has a piece of metal that a screw is attached to—this piece- has ‘teeth’ on it that grab into the c-channel once you tighten the screw- keeping the rails in place.

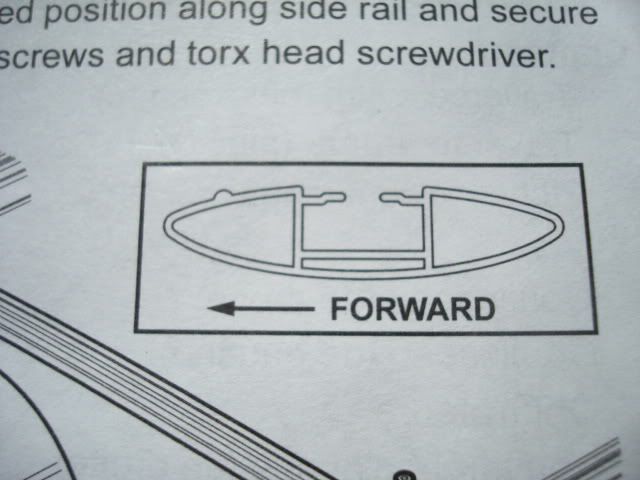

To install the crossrails- take note of this…  the crossrail has a bump on the leading edge- im pretty sure this is related to it making less noise and or aerodynamic properties.
It HAS to point to the front.



Note- one of the crossrails is longer than the other. The longer goes in the FRONT.
On the drivers side- youll want to set the crossrail on the slider- and mate the 2.
Note that you have to insert- and move the slider so that the 2 couple together.
Repeat for the rear.

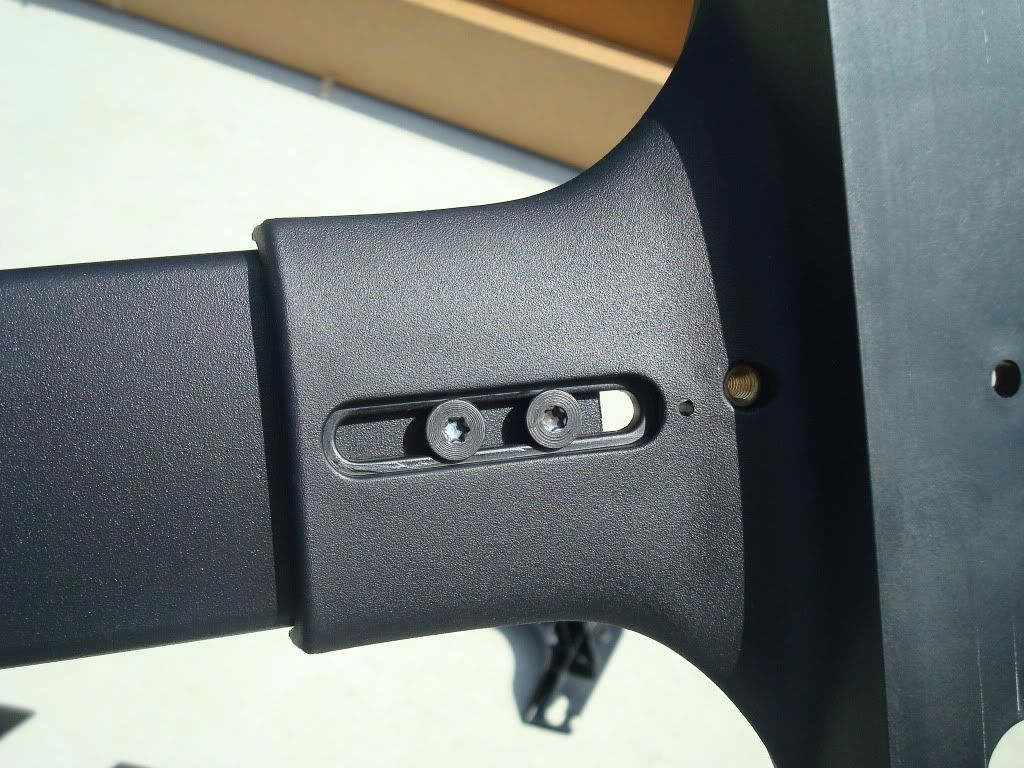

Since the rails on the top are not STRAIGHT- the crossbars have 2 screws on the passenger side of the crossbars that allow the rail to expand.
Depending on the location of the crossbar- youll may have to pull out or push in- so that this end of the crossbar can mate with the slider.
The drivers side- is not set up to allow it to expand. You can if you like- use your torx key to tighten the screws once you know where youll leave the crossbars.
Repeat for the rear.




Once you know where you will set the front rear (based on your cargo)- you can use the screws to set the rails in place. Repeat for front/rear on left and right side.

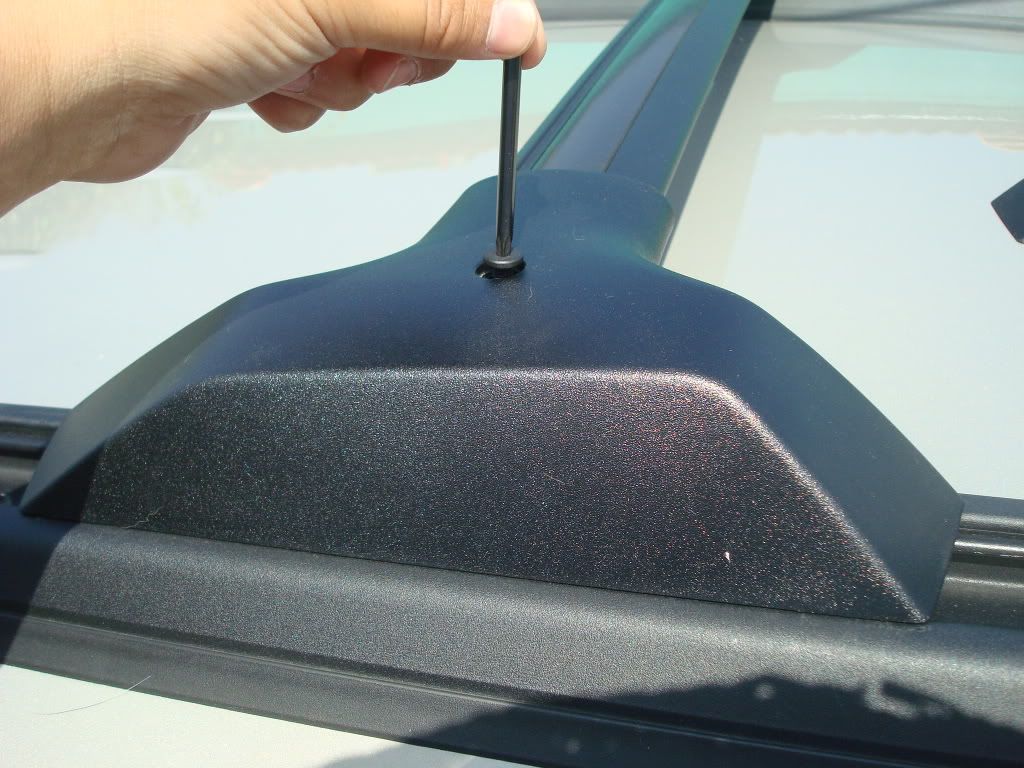

Attach the cover and tighten the screw. You will notice that the covers are not identical-

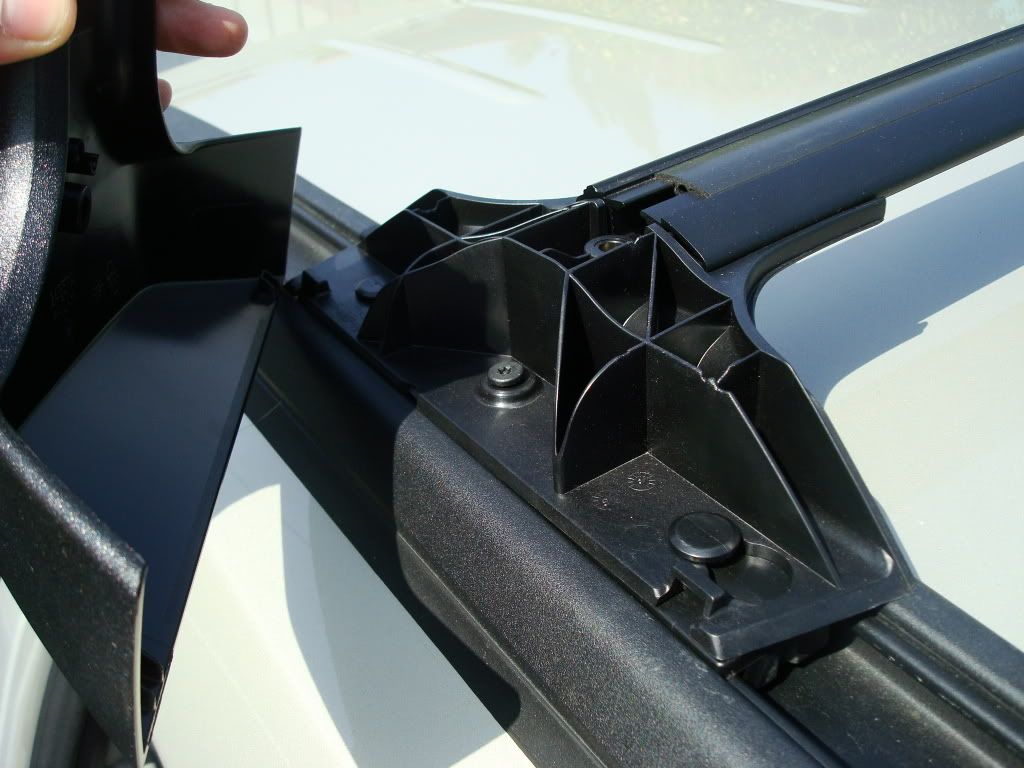

Align the tabs on the cover to the crossbar assembly.

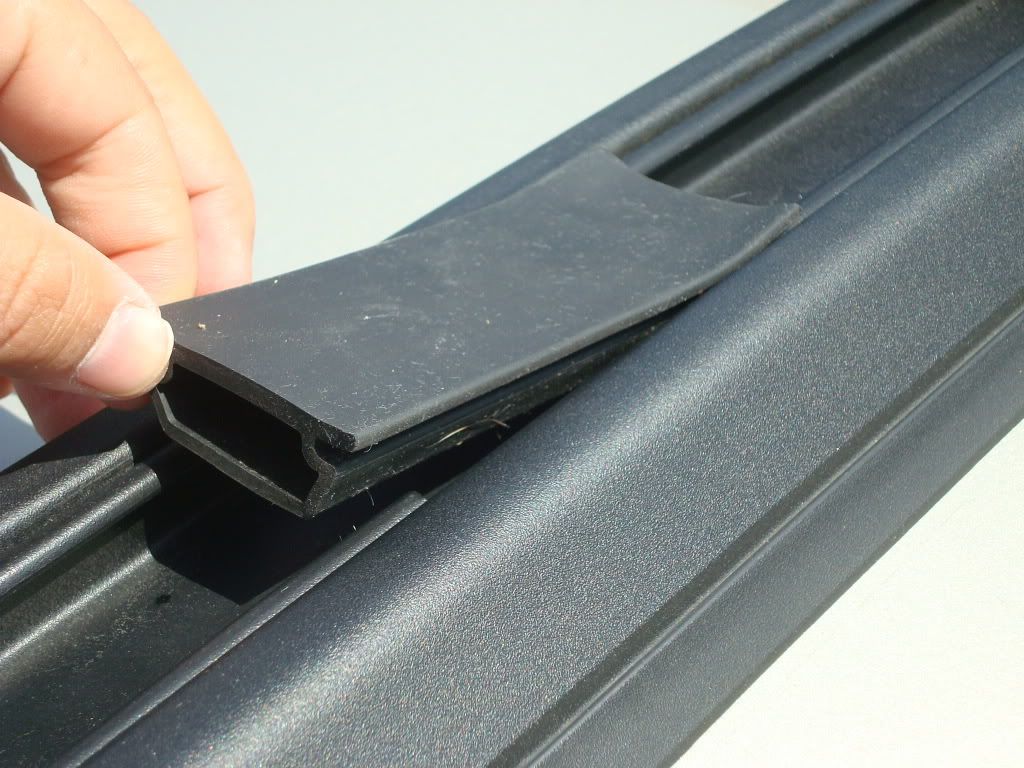

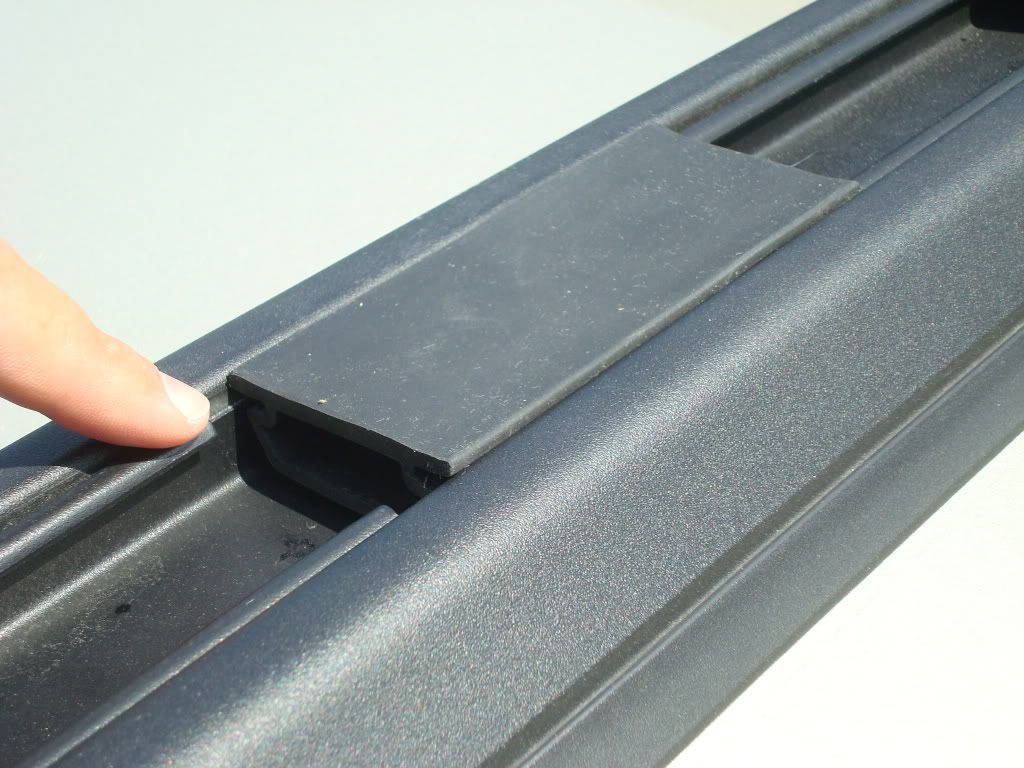

The last step is to insert the rubber cap. My guess is that this cap is there so that the crossbars don’t slide out and fly off. Its possible over time the screws can loosen- and the rail move around and possibly come loose… that’s my guess.




That’s it.

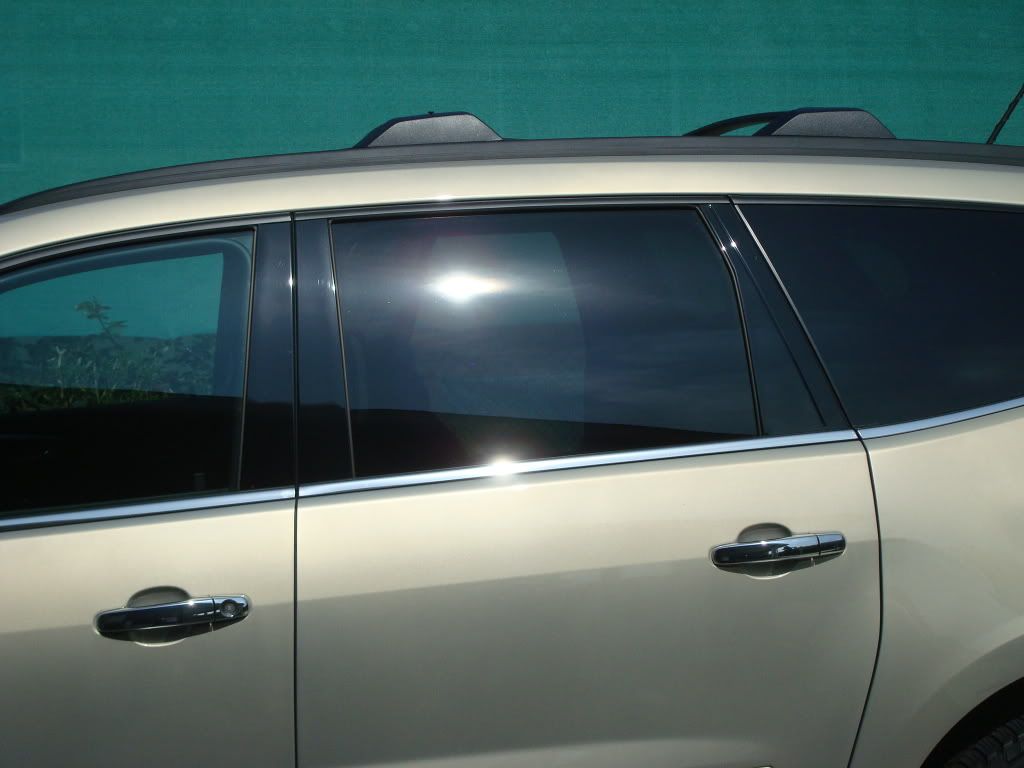

Before and after.



Several notes:
The instructions do make recommendations on where to place the rails if you have the sunroof.
The Instructions do make recommendations on where to place the rails for LEAST wind noise.
Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    27,000
2010 Traverse 3.6L-    84,000
2003 Trailblazer 4.2L-173,000
rbarrios
Traverse GOD!
********
Offline Offline

Posts: 7255


View Profile
« Reply #1 on: March 14, 2011, 01:19:04 PM »

I was prepping for an upcoming trip- and decided to do the how to.
Note the final pic has a piece of the screw sticking up- thats cause I was going to fit a Thule Cargo bag and was getting ready to slide the bars.
I ended up placing the bag on top- tying it down and then moving the bars to allow a nice fit of the bag.
Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    27,000
2010 Traverse 3.6L-    84,000
2003 Trailblazer 4.2L-173,000
Tiestosteele
Hero Member
*****
Offline Offline

Gender: Male
Posts: 551



View Profile
« Reply #2 on: March 14, 2011, 02:13:30 PM »

As always, thanks for the write up Rbarrios! What did you install them for? How often do you plan on using them.

I personally think it looks better without them up there, that is unless you are going to actually use them. Only once did I wish I had them because we went xmas tree shoping. I thought I could tie the tree down somehow, well when I got their obviously I couldnt so I had to jam the tree in the car Bang Head

Thanks for the pics
Logged

11 Jeep Grand Cherokee - Nav, Push Start, DVD
09 LTZ Black Granite Metallic, Nav, Dual DVD, True HID headlights, LED Reverse lights (SOLD)
04 Azure Blue Mach 1 - 5spd., tri ax shifter, bassani headers, magnaflow exhaust, custom xpipe, 4.10 gears, 17x10.5" 315 drag radials, custom tune.
rbarrios
Traverse GOD!
********
Offline Offline

Posts: 7255


View Profile
« Reply #3 on: March 14, 2011, 03:00:59 PM »

this Thursday we leave on a trip from Los Angeles to Florida. 4 adults and 1 baby.
I want the passengers to have all the room inside. if they want to raise their feet etc.
so Ive told them- all clothes will go on top (Thule cargo bag). Other stuff on the hitch.
I plan on using bunjee cords to flatten the cargo bag (for better aerodynamics).
The rack in the back will have the cooler and cases of Mexican Pepsi, Mexican Coke, and Mt Dew throwback edition.
Yeah I know-- weird- but- heres the reasoning--- bro and mother in law- drink regular Mt-Dew like crazy. Bros wife drinks coke. so I bring them gifts.
(they been unable to find any of those locally).
but this is pretty much what my setup will be.

Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    27,000
2010 Traverse 3.6L-    84,000
2003 Trailblazer 4.2L-173,000
Tiestosteele
Hero Member
*****
Offline Offline

Gender: Male
Posts: 551



View Profile
« Reply #4 on: March 14, 2011, 03:08:54 PM »

this Thursday we leave on a trip from Los Angeles to Florida. 4 adults and 1 baby.

WOW, that's a drive! Then it makes total sense to have roof rails.
Logged

11 Jeep Grand Cherokee - Nav, Push Start, DVD
09 LTZ Black Granite Metallic, Nav, Dual DVD, True HID headlights, LED Reverse lights (SOLD)
04 Azure Blue Mach 1 - 5spd., tri ax shifter, bassani headers, magnaflow exhaust, custom xpipe, 4.10 gears, 17x10.5" 315 drag radials, custom tune.
rbarrios
Traverse GOD!
********
Offline Offline

Posts: 7255


View Profile
« Reply #5 on: March 14, 2011, 03:30:50 PM »

Once we return from trip- theyre coming off.
But I figured Id leave space for the missus, grandma, and great grandma.....
From previous trips- I already know----  "My feet are swollen"....
Every stop- im also going to make them switch seats. from front passenger, to 2nd row- to 3rd row etc....
Oh and forgot to mention- another reason to carry little inside...
When I get tired (the driver)... Im going to flip down the 60 portions- and take a nap.
I have it all planned out in my head... well see how this pans out on the road.
Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    27,000
2010 Traverse 3.6L-    84,000
2003 Trailblazer 4.2L-173,000
jamesmyboy
Full Member
***
Offline Offline

Gender: Male
Posts: 150


View Profile
« Reply #6 on: March 14, 2011, 03:33:06 PM »

Have a safe trip, and please keep us posted on the mileage you get!
Logged

2011 Red Jewel 1LT FWD
Factory 20s Bluetooth DVD
cruzer
Full Member
***
Offline Offline

Gender: Male
Posts: 202



View Profile
« Reply #7 on: March 14, 2011, 04:42:51 PM »

rbarrios,

Doesn't the rear cargo block the license plate?  Are you going to move the license plate to be visible? Just curious....

Setup looks nice...

Have a wonderful and safe trip!
Logged

'10 2LT/AWD Red Jewel Tintcoat
7-passenger Ebony Leather,Personal Connectivity Pkg,Rear Pwr Liftgate,18" wheels,Rear Parking Assist,Trailering Equipment
Nav/Rear Entertainment Sys w/Rear Cam and USB Port,115volt pwr outlet,Tri-zone climate cntrl,'Hit the Road' Pkg
Assembled March 2010 Lansing, MI
rbarrios
Traverse GOD!
********
Offline Offline

Posts: 7255


View Profile
« Reply #8 on: March 14, 2011, 05:24:13 PM »

valid question.
yes- on the Traverse the rack does block the plate.
Im going to leave it on the bumper.
If I get pulled over- ill take the ticket- then take it off and bunjee cord it to my  cargo rack.
if it makes any difference... California is a 2 plate state.
Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    27,000
2010 Traverse 3.6L-    84,000
2003 Trailblazer 4.2L-173,000
84camino
Global Moderator
Sr. Member
*****
Offline Offline

Gender: Male
Posts: 384

cadavev cadavev
View Profile
« Reply #9 on: March 14, 2011, 11:19:43 PM »

Great right up on the kit. My traverse had them from the factory and the dealer did not have the wrench and told me the kit does not come with it. Well they sent me an entire torx bit security set cause they knew I had them by the balls. I like how the bars look reminds me of a suburban look.
Logged

Dave Vianu
Rancho Cucamonga, Ca
11 Traverse 1LT
84 El Camino Custom
2LT AWD
Sr. Member
****
Offline Offline

Gender: Male
Posts: 465


View Profile
« Reply #10 on: March 15, 2011, 12:28:00 AM »

 Great write up how they assembled and fastened , very informative with excellent pictures. Thanks rbarrios thumbs up

 Have a great trip , I'm interested in how comfortable you will be sleeping in the back of the Traverse, should be quite and smooth
Logged

2010 2LT AWD, Jewel Red
Mft Info: Assembled on a Wed April 7, 2010 Lansing Mi
 2005 Malibu LS
GXPWeasel
Traverse Freak
******
Offline Offline

Gender: Male
Posts: 1165



View Profile
« Reply #11 on: March 15, 2011, 09:03:49 AM »

Looks good there Rbarrios, as usual.
The cargo rails do look as thought they would be useful in situations like you have, but I was also glad to see that you will be taking the cross bars off when not in use, as I have heard this can make a slight difference in fuel mileage (although very, very slight indeed).
Logged

Greg.

2010 Red Jewel LT2 (Spring Edition)
rbarrios
Traverse GOD!
********
Offline Offline

Posts: 7255


View Profile
« Reply #12 on: March 15, 2011, 11:28:54 AM »

Since I put them on- Ive only hit about 50 MPH on the freeway... and so far- cant hear them up there...
Im guessing if theyre going to make noise- it will be in the 70ish range.. well see.
Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    27,000
2010 Traverse 3.6L-    84,000
2003 Trailblazer 4.2L-173,000
cruzer
Full Member
***
Offline Offline

Gender: Male
Posts: 202



View Profile
« Reply #13 on: March 15, 2011, 11:57:31 AM »

I've got Crossbars installed too and no noise either (I gone over 80ish with them on).  But I don't now if there will be noise with something on top.
Logged

'10 2LT/AWD Red Jewel Tintcoat
7-passenger Ebony Leather,Personal Connectivity Pkg,Rear Pwr Liftgate,18" wheels,Rear Parking Assist,Trailering Equipment
Nav/Rear Entertainment Sys w/Rear Cam and USB Port,115volt pwr outlet,Tri-zone climate cntrl,'Hit the Road' Pkg
Assembled March 2010 Lansing, MI
AFMoulton
Jr. Member
**
Offline Offline

Posts: 37


View Profile
« Reply #14 on: March 15, 2011, 03:23:07 PM »

I have them on top of my wife's Traverse and they made no noise @ any speed on our recent trip

Sent from my Eris using Tapatalk
Logged

2009 LT1 FWD
2008 Silverado Texas Addition 5.3L
2008 Fleetwood Bayside
2005 Suzuki M50 Boulevard
ebelp
Newbie
*
Offline Offline

Gender: Male
Posts: 7



View Profile
« Reply #15 on: March 30, 2011, 10:05:36 AM »

Does anyone know the part number of the crossbar kit that includes the c-channels??  I just asked my dealer about this, but they had no idea there were 2 different configurations (with and without c-channels).
Logged
rbarrios
Traverse GOD!
********
Offline Offline

Posts: 7255


View Profile
« Reply #16 on: March 30, 2011, 12:08:18 PM »

what you need is...

Chevrolet Traverse Roof Rack, Side and Cross Rails
19244268
Complete Package Contains Set of 2 C-Channel Side Rails and 2 Cross Rails, Black
abuot $220. (shipping not included). You cant take the number above and enter it in yahoo/google. youll get the sites that sell it.

read here-- as when you order they may ask about this..
http://www.traverseforum.com/index.php?topic=979.0
Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    27,000
2010 Traverse 3.6L-    84,000
2003 Trailblazer 4.2L-173,000
bikerglasses
Jr. Member
**
Offline Offline

Gender: Male
Posts: 10


View Profile WWW
« Reply #17 on: April 08, 2011, 06:49:38 PM »


Gmpartsdirect has part# 19244268  the part for $157... that's like $40-$50 less then anyone else I've seen... is this the correct part #?

Logged

- 2011 Chevy Traverse (bluetooth/tow package/roof rails)
bikerglasses
Jr. Member
**
Offline Offline

Gender: Male
Posts: 10


View Profile WWW
« Reply #18 on: April 15, 2011, 12:07:35 AM »

That price above ^^ is correct.

Does anyone have the differernt Part #'s...

C Channel part #'s
Side Rail part #?



Thanks.
Logged

- 2011 Chevy Traverse (bluetooth/tow package/roof rails)
rival22
Jr. Member
**
Offline Offline

Posts: 54


View Profile
« Reply #19 on: April 15, 2011, 09:42:18 AM »

I got them thrown in with our 2011 LT. There were some delays in delivery, so this was one of the things we asked for.

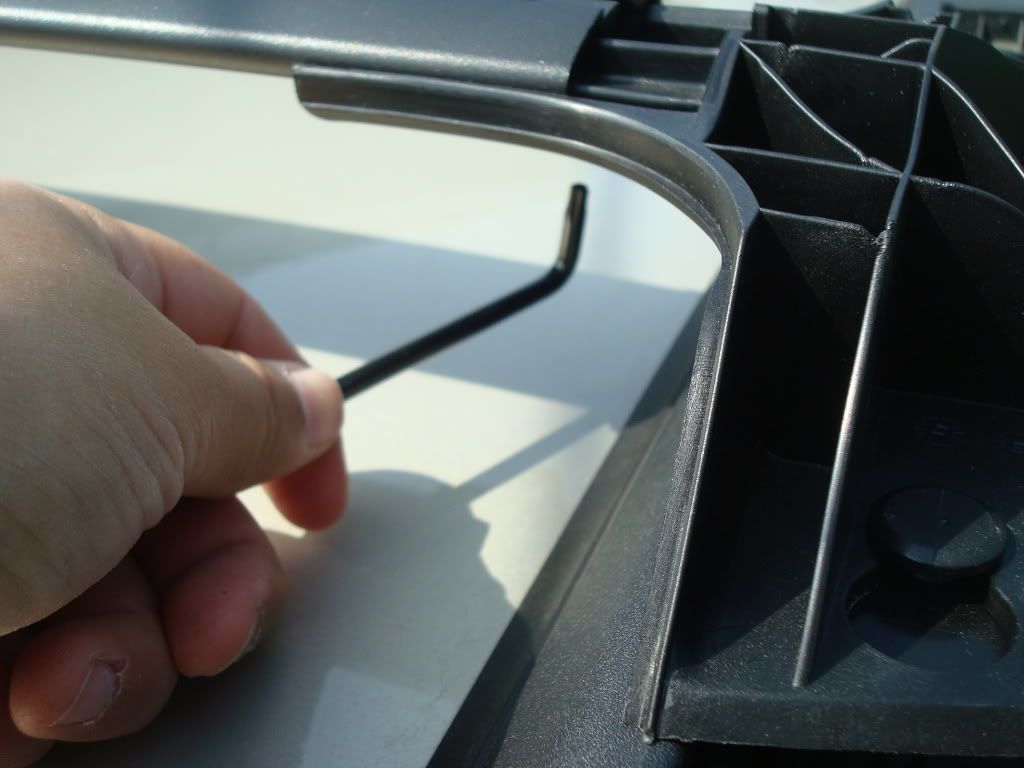

They were really easy and quick to install. I put them on when we got them to see how the looked and to get the spacing right for our Thule bag (similar to rbarrios'). I like the look of the Traverse with the cross rails compared to without, so I kept them on.
Logged

2011 Traverse AWD 1LT, White, Ebony cloth, 7 passenger, Tow Package, Dual SkyScape Sunroof
Pages: [1] 2 3 ... 6   Go Up   [ Home | Unread Posts | Unread Replies ]
  Print

Jump to:
Custom Auto Accessories

Powered by MySQL Powered by PHP Powered by SMF 1.1.14 | SMF © 2006-2011, Simple Machines LLC | Sitemap
©2014 traverseforum.com All Rights Reserved.
All trademarks referenced herein are property of their respective owners.
Valid XHTML 1.0! Valid CSS!
